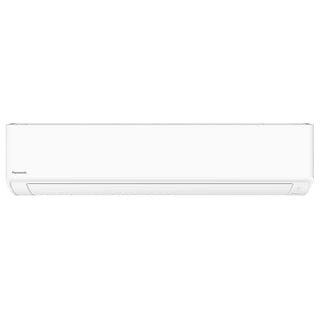

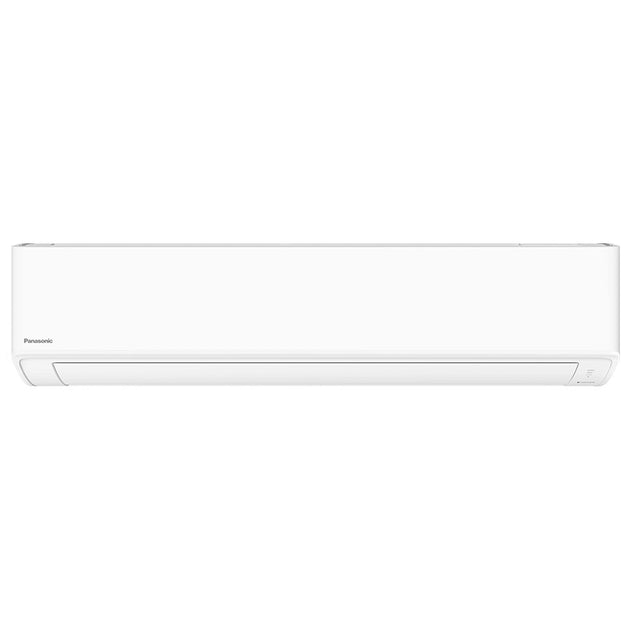

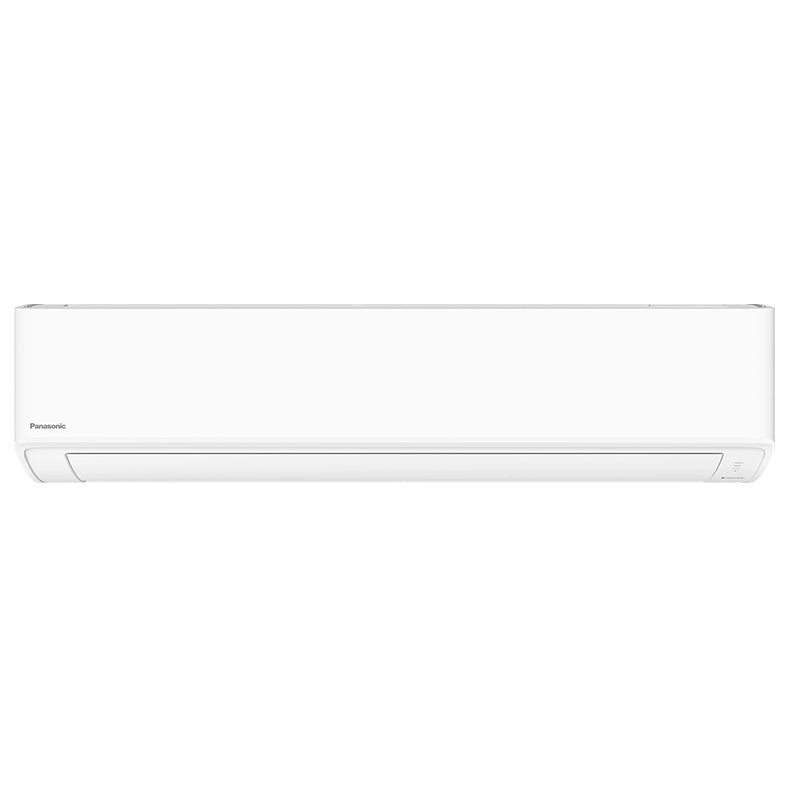

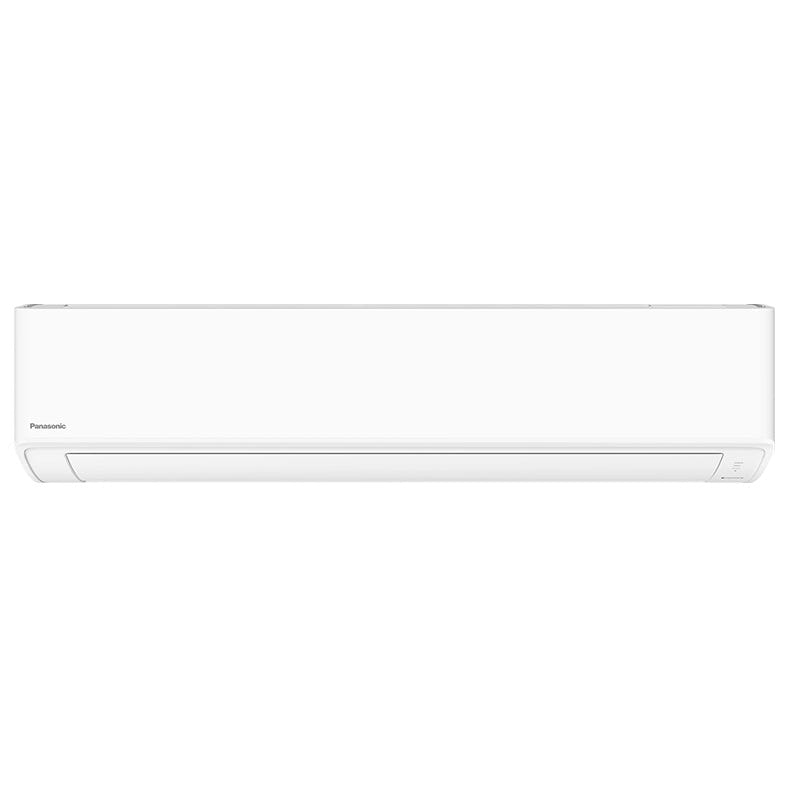

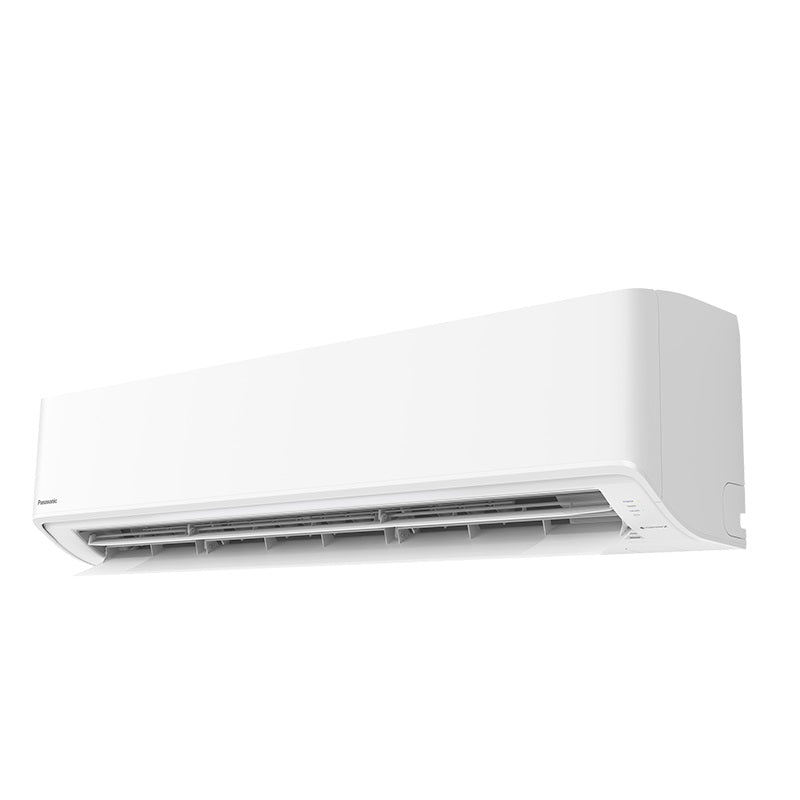

PANASONIC AIR CONDITIONER SPLIT REVERSE INVERTER 9.5/10.3kW
PANASONIC AIR CONDITIONER SPLIT REVERSE INVERTER 9.5/10.3kW
Model:
CS/CU-Z95AKR
Ipn:
835194
PANASONIC AIR CONDITIONER SPLIT REVERSE INVERTER 9.5/10.3kW
PANASONIC AIR CONDITIONER SPLIT REVERSE INVERTER 9.5/10.3kW
Model:
CS/CU-Z95AKR
Ipn:
835194
Regular price
$3,299.00
Regular price
Was
$0.00
Sale price
$3,299.00
Unit price
/
per
Taxes included.
manufacturer's warranty
You have not set a location
Related Promotions
View all-
Summer promotion
Enter the Stan Cash Summer Giveaway for your chance to win a Breville Nespresso Creatista Uno Coffee Machine! Don’t miss out—register today for your shot at barista-quality coffee at home.
Offer Ends: 2nd February 2025
Redemption Cut-Off: 2nd March 2025
Enter the Stan Cash Summer Giveaway for your chance to win a Breville Nespresso Creatista Uno Coffee Machine! Don’t miss out—register today for your shot at barista-quality coffee at home.
Offer Ends: 2nd February 2025
Redemption Cut-Off: 2nd March 2025
-
Summer Giveaway
Enter the Stan Cash Summer Giveaway for your chance to win a Breville Nespresso Creatista Uno Coffee Machine! Don’t miss out—register today for your shot at barista-quality coffee at home.
Offer Ends: 2nd February 2025
Redemption Cut-Off: 2nd March 2025
1 commentEnter the Stan Cash Summer Giveaway for your chance to win a Breville Nespresso Creatista Uno Coffee Machine! Don’t miss out—register today for your shot at barista-quality coffee at home.
Offer Ends: 2nd February 2025
Redemption Cut-Off: 2nd March 2025
1 comment
1
/
of
2
Collapsible content
Overview
Delivery & Returns
Payment options
Back up plans
Overview
description
PANASONIC AIR CONDITIONER SPLIT REVERSE INVERTER 9.5/10.3kW
specifications
-
BrandPanasonic
-
IPN835194
-
ModelCS/CU-Z95AKR
-
Manufacturer's Warranty5 Years
-
Size9.5/10.3kW
-
Width1212 mm
-
Height309 mm
-
Depth269 mm
-
Indoor UnitCS-Z95AKR
-

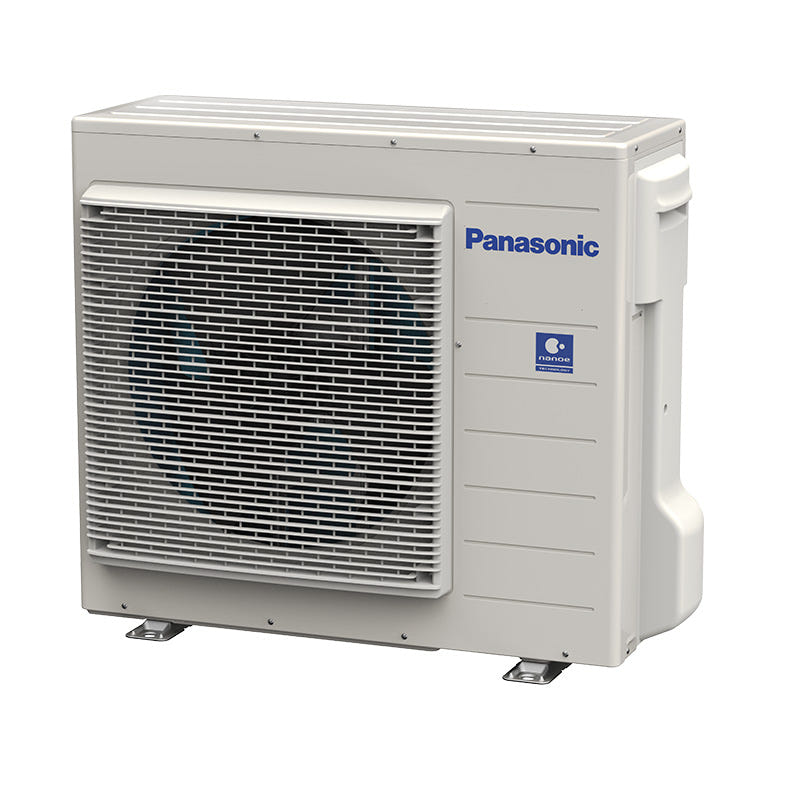

Outdoor UnitCU-Z95AKR
-
Cooling Capacity (min-max) (kW)9.50 (2.80-11.20) kW
-
Heating Capacity (min-max) (kW)10.30 (2.40-12.30) kW
-
Cooling Capacity (min-max) (Btu/h)32,400 (9,550-38,200) Btu/h
-
Heating Capacity (min-max) (Btu/h)35,100 (8,180-41,900) Btu/h
-
Cooling Indoor Air Flow (L/s)407 L/s
-
Heating Indoor Air Flow (L/s)420 L/s
-
Dehumid (L/h)5.00 L/h
-
Cooling Running Current (A)12.00 A
-
Heating Running Current (A)11.70 A
-
Max Current (A)16.60 A
-
Cooling Power Input (min-max) (kW)2.84 (0.50-3.50) kW
-
Heating Power Input (min-max) (kW)2.78 (0.44-3.50) kW
-
Cooling AEER/EER3.33 W/W / 3.35 W/W
-
Heating ACOP/COP3.69 W/W / 3.71 W/W
-

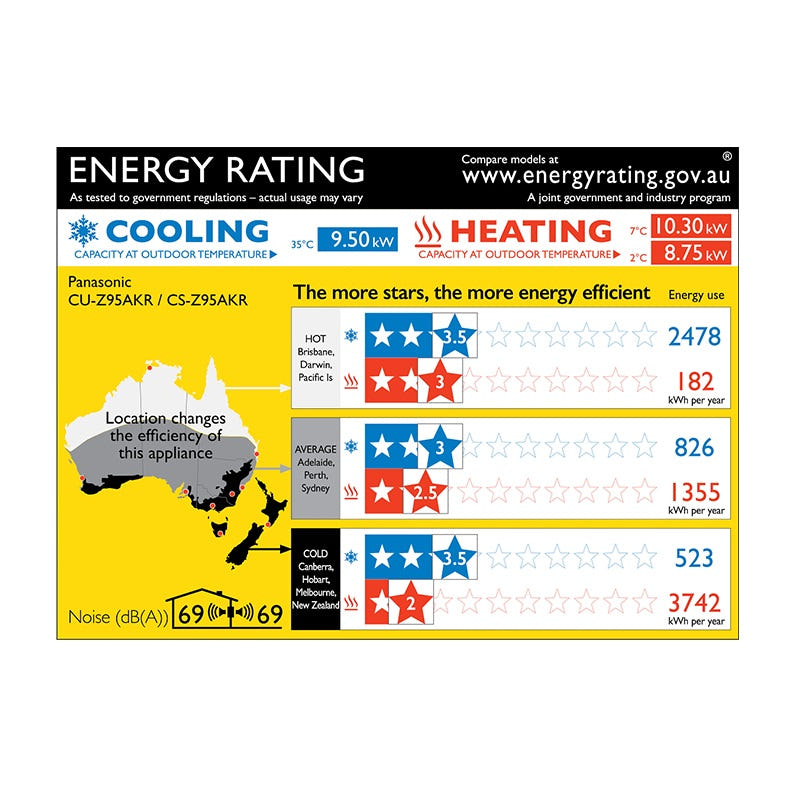

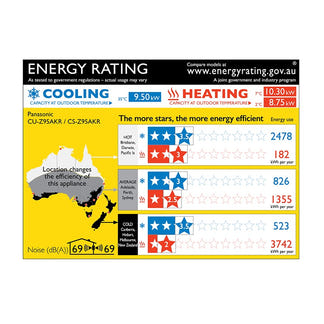

Star Rating - Cooling (Hot Climate)3.5 TCSPF
-
Star Rating - Cooling (Average Climate)3.0 TCSPF
-
Star Rating - Cooling (Cold Climate)3.5 TCSPF
-
Star Rating - Heating (Hot Climate)3.0 HSPF
-
Star Rating - Heating (Average Climate)2.5 HSPF
-
Star Rating - Heating (Cold Climate)2.0 HSPF
-
Indoor Unit Sound Pressure Noise Level (Cooling) (H / L / Q-Lo)53/40/38 dB(A) *Sound pressure level specification is measured according to JIS C9612.
-
Indoor Unit Sound Pressure Noise Level (Heating) (H / L / Q-Lo)52/40/35 dB(A) *Sound pressure level specification is measured according to JIS C9612.
-
Indoor Unit Sound Power Noise Level (Cooling) (H / L / Q-Lo)69/56/54 dB(A)
-
Indoor Unit Sound Power Noise Level (Heating) (H / L / Q-Lo)68/56/51 dB(A)
-
Outdoor Unit Sound Pressure Noise Level (Cooling) (H / Q-Lo)55/50 dB(A) *Sound pressure level specification is measured according to JIS C9612.
-
Outdoor Unit Sound Pressure Noise Level (Heating) (H / Q-Lo)55/50 dB(A) *Sound pressure level specification is measured according to JIS C9612.
-
Outdoor Unit Sound Power Noise Level (Cooling) (H / Q-Lo)69/64 dB(A)
-
Outdoor Unit Sound Power Noise Level (Heating) (H / Q-Lo)69/64 dB(A)
-
Refrigerant TypeR32
-
Refrigerant Pipe Diameter (Liquid Side)ø 6.35 mm (1/4 inch)
-
Refrigerant Pipe Diameter (Gas Side)ø 15.88 mm (5/8 inch)
-
Pipe Extension Length (min-max)3 m ~ 20 m
-
Maximum Elevation Length20 m
-
Pipe Length for Additional Refrigerant Gas10 m
-
Additional Gas Amount25 g/m
-
Power SupplyOutdoor
-
Outdoor Unit Operating Range (Cooling)-10°C ~ +46°C
-
Outdoor Unit Operating Range (Heating)-15°C ~ +24°C
-
iAUTO-XYes
-
ECO Mode with A.I.Yes
-
Inverter ControlYes
-
Sleep ModeYes
-
Quiet ModeYes
-
Fan ModeYes
-
Soft Dry Operation ModeYes
-
Hot Start ControlYes
-
Auto Changeover (Inverter)Yes
-
Personal Airflow CreationNo
-
Manual Horizontal Airflow Direction ControlYes
-
Airflow Direction Control (Up & Down)Yes
-
nanoe™ XYes (Generator Mark 1)
-
Odour Removing FunctionYes
-
Removable Washable PanelYes
-
24-Hour Dual ON & OFF Real Setting TimerYes
-
Demand Response Enabling Device (DRED)Yes
-

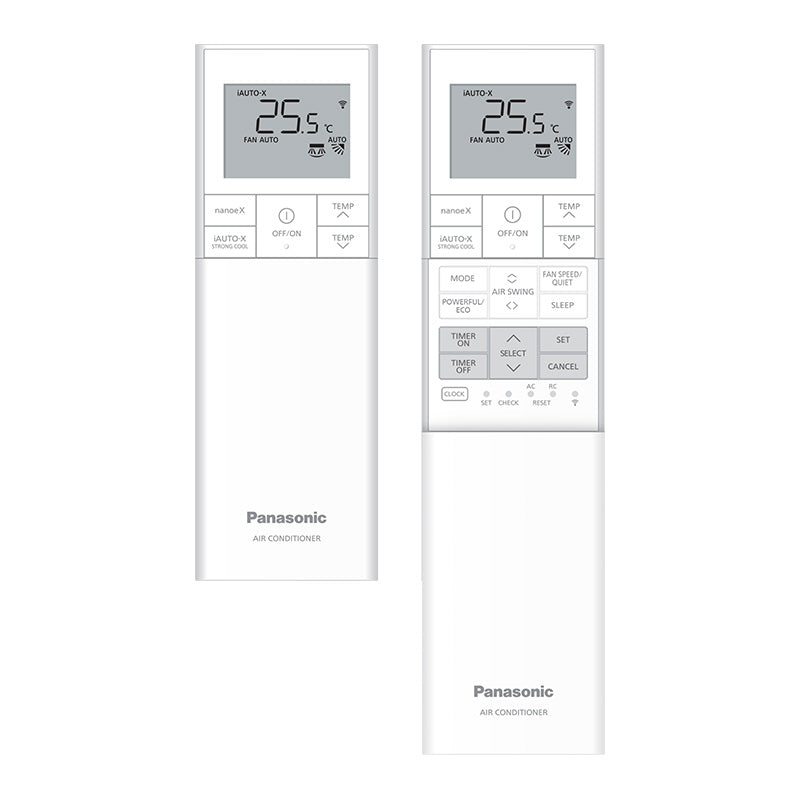

LCD Wireless Remote ControlYes
-
Wi-FiYes (Built-in)
-
Wired Remote ControlYes (Optional)
-
Random Auto RestartYes (32 Restart Patterns)
-
Blue Fin CondenserYes
-
Long Piping (max.)20 m
-
Top Panel Maintenance AccessYes
-
Self-Diagnostic FunctionYes
-
NotePlease read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
features
- 24-hour nanoe™ X Air Purification
- iAUTO-X function
- Built-in Wi-Fi
- Voice Assistant Compatibility
- Faster and Further Airflow with AEROWINGS
- Built Tough to Last
- ECO Mode with Artificial Intelligence (A.I.) Control
- Corrosion-Resistant Blue Fin Condenser
- Water Resistant PCB
- Corrosion-Resistant Outdoor Coating
- Better Heat Transfer with Copper Tube Condenser
- Wireless Remote Controller
- Optional Wired Remote Controller
